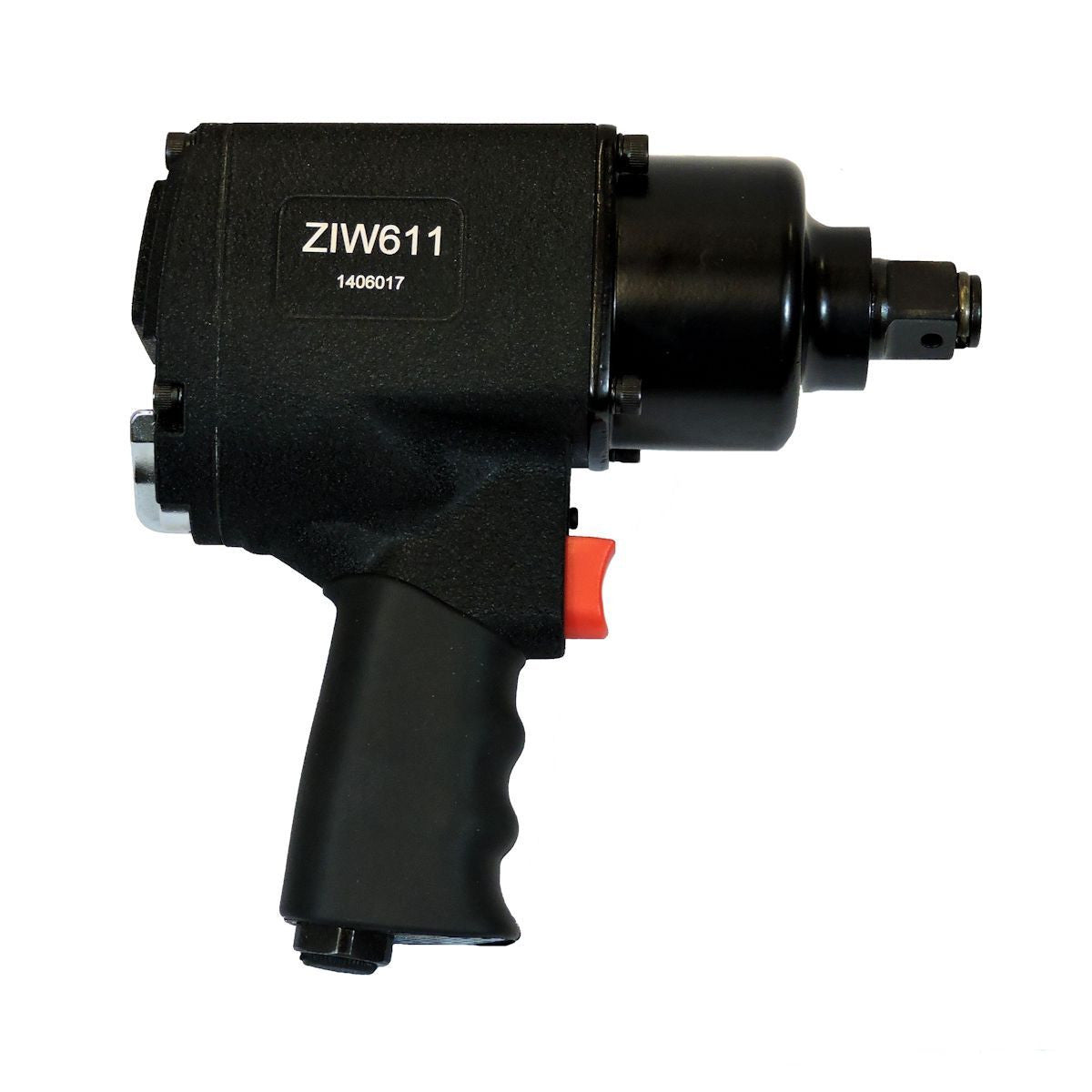

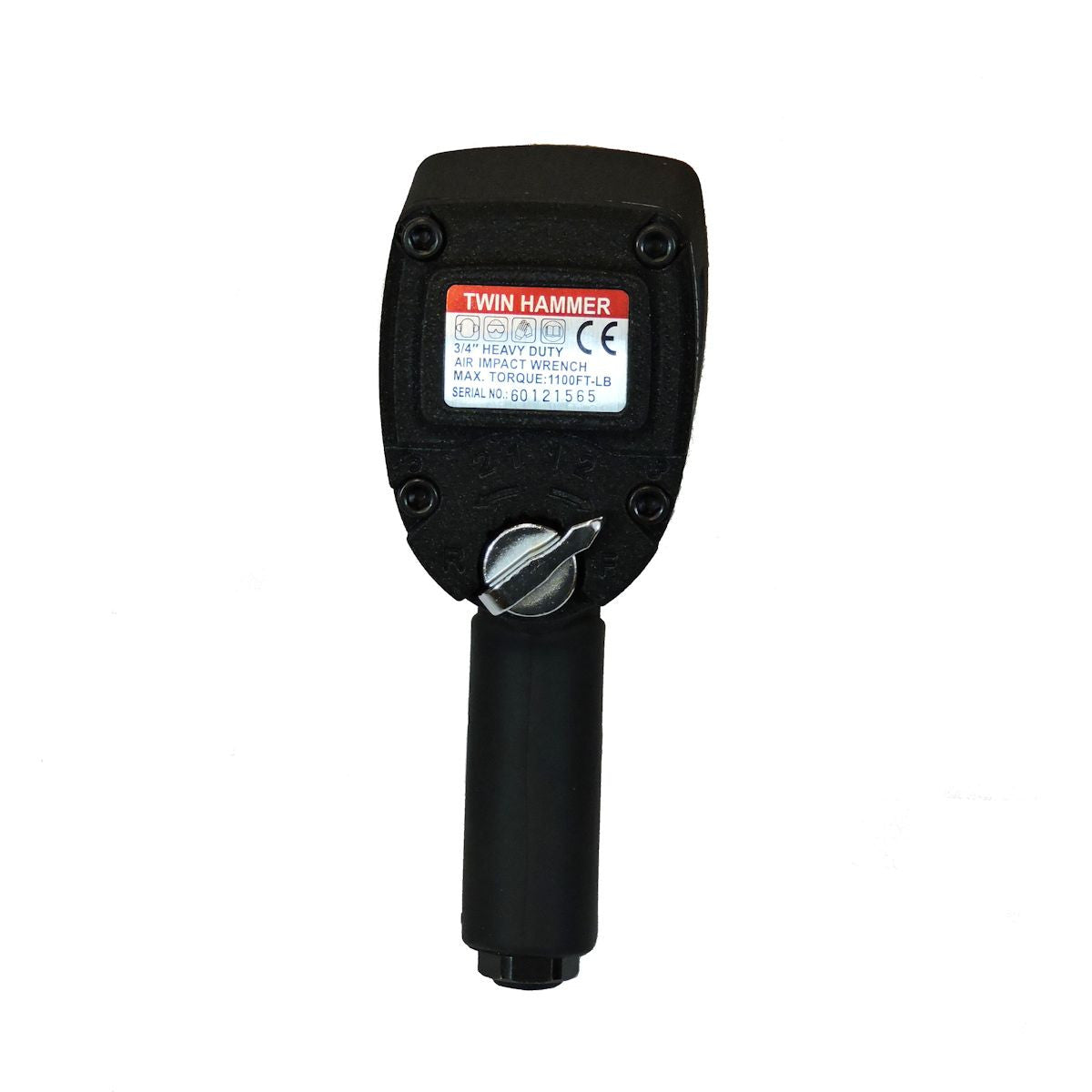

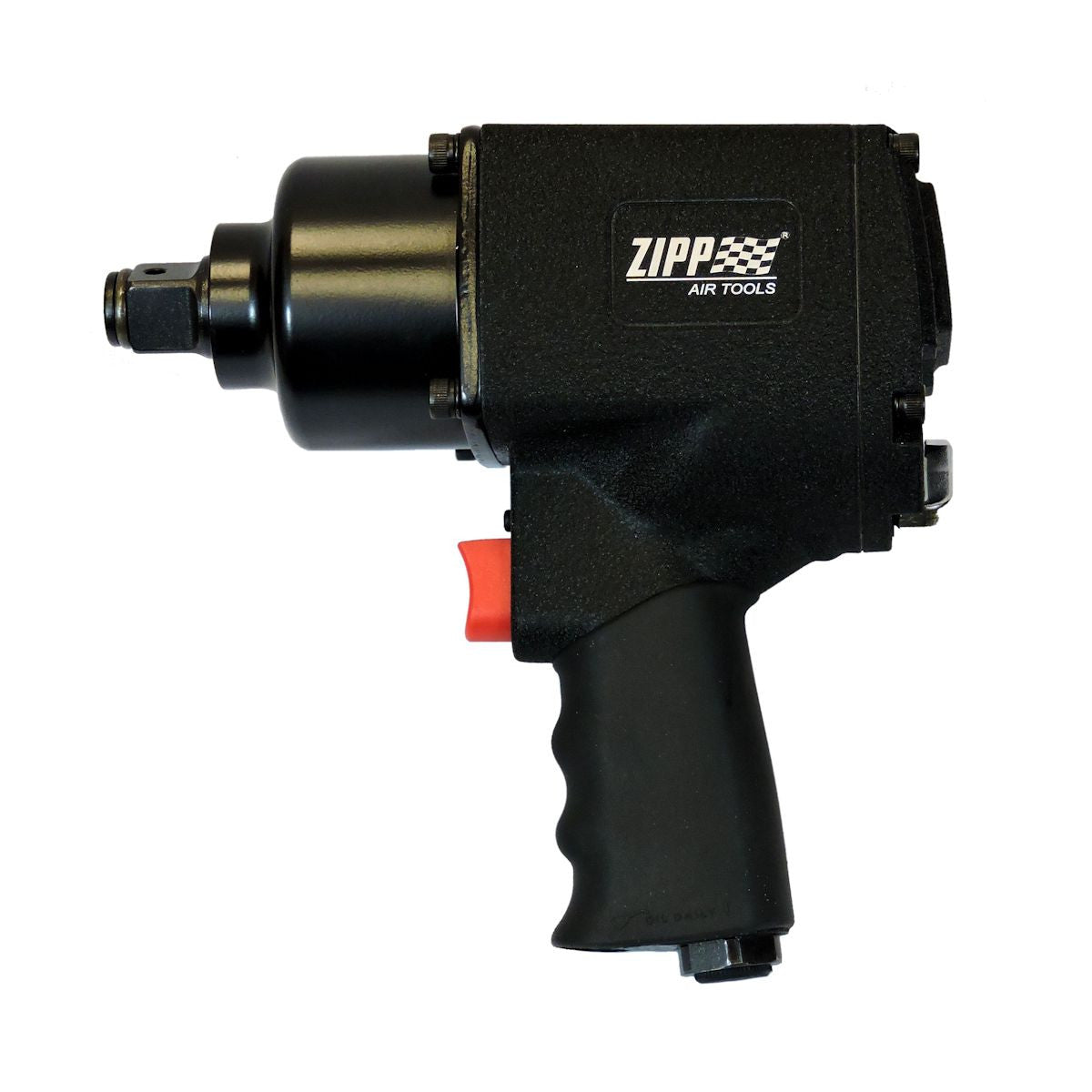

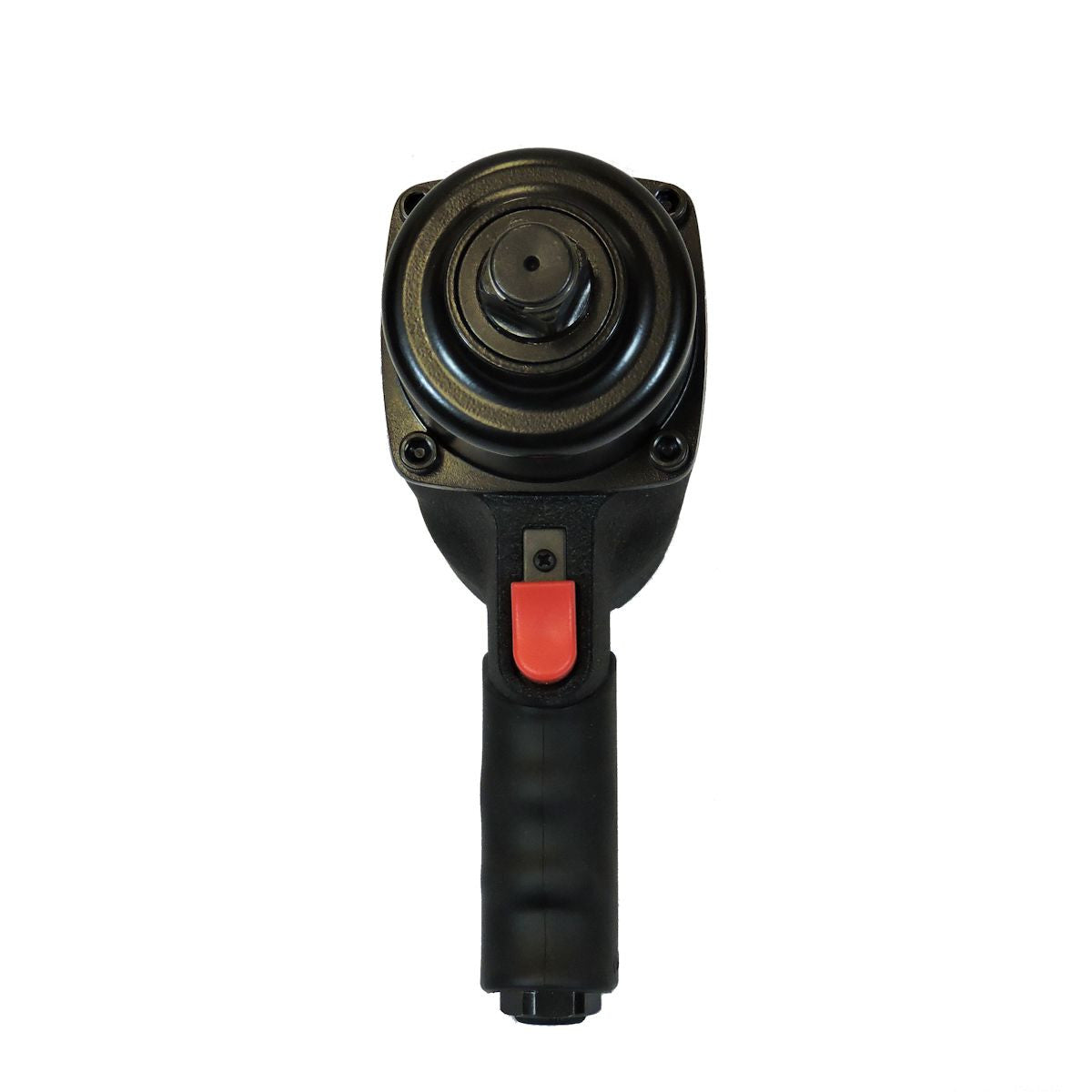

• ZIW611 -- 3/4" 1100 FT-LB -- TWIN HAMMER IMPACT

FEATURES

  • Adjustable 3 speeds for Forward/Reverse mode.
  • Use for heavy automotive and truck repair, construction or assembly line.
  • Durable new twin hammer design creates more torque with less vibration.
  • Rear exhaust.

SPECIFICATIONS

MODEL ZIW611
DRIVE SQUARE 3/4" 19 mm
FREE SPEED RPM 6,000
MAXIMUM TORQUE 1,100 ft.lbs 1492 Nm
OPERATING AIR PRESSURE 90 psi 6.2 bar
AVERAGE AIR CONSUMPTION 24.7 cfm 700 lm
WEIGHT 10.45 lbs 4.75 kg
MINIUM HOSE SIZE 3/8" 10 mm
AIR INLET SIZE NPT 1/4"



DOWNLOADS AND VIDEOS

[ZIW611 Parts Schematic]
